Single Row Crossed Roller

3.单排交叉滚子内齿internal gear

型号	外形尺寸							安装尺寸						齿参数				载荷	重量
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi	m	Z	x·m	Dp
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	–	[mm]	[kN]	[kg]
LXSI 140414	484	415	411	325	44.5	44.5	56	460	24	14	375	24	M12	5	67	–	335	26.2	31
LXSI 140544	614	545	541	444	44.5	44.5	56	590	32	14	505	32	M12	6	76	–	456	35	43
LXSI 140644	714	645	641	546	44.5	44.5	56	690	36	14	605	36	M12	6	93	–	558	35	50
LXSI 140744	814	745	741	648	44.5	44.5	56	790	40	14	705	40	M12	6	110	–	660	35	58
LXSI 140844	914	845	841	736	44.5	44.5	56	890	40	14	805	40	M12	8	94	–	752	46.7	69
LXSI 140944	1014	945	941	840	44.5	44.5	56	990	44	14	905	44	M12	8	107	–	856	46.7	76
LXSI 141094	1164	1095	1091	984	44.5	44.5	56	1140	48	14	1055	48	M12	8	125	–	1000	46.7	91
LXSI 161204	1289	1206	1202	1072	58	58	68	1257	45	16	1151	45	16	10	108	–	1080	96.67	148
LXSI 161314	1399	1316	1312	1182	58	58	68	1367	50	16	1261	50	16	10	119	–	1190	96.67	161
LXSI 161424	1509	1426	1422	1292	58	58	68	1477	54	16	1371	54	16	10	130	–	1300	96.67	175
LXSI 161534	1619	1536	1532	1402	58	58	68	1587	60	16	1481	60	16	10	141	–	1410	96.67	189
LXSI 161644	1752	1646	1642	1495	58	58	68	1708	54	22	1580	54	22	10	150	–	1500	96.67	239
LXSI 161754	1862	1756	1752	1605	58	58	68	1818	60	22	1690	60	22	10	161	–	1610	96.67	256
LXSI 201904	2012	1906	1902	1729	58	58	68	1968	64	22	1840	64	22	14	124	–	1736	135.33	304
LXSI 160380	451	381	379	291	45	45	55	425	24	13.5	335	24	13.5	5	60	–	300	–	28
LXSI 200489	562	490.5	487.5	385	50	50	60	538	30	14	440	30	14	6	66	–	396	–	44
LXSI 200573	665	574.5	571.5	457	50	50	60	630	28	17.5	518	28	17.5	6	77	-3	468	–	62
LXSI 250673	771	674.5	671.5	541	60	60	70	736	32	17.5	610	32	17.5	6	91	-3	552	–	96
LXSI 250714	825	715.5	712.5	567.5	62	78	90	785	26	18	640	20	18	7	82	–	581	–	135
LXSI 250770	871	771.5	768.5	634	60	60	70	833	36	17.5	707	36	17.5	8	80	-4	648	–	112
LXSI 250849	960	850.5	847.5	706	65	65	70	914	30	22	784	30	22	8	89	-4	720	–	14.4
LXSI 250946	1066	947.5	944.5	785	65	75	85	1015	36	22	880	36	22	10	79	-6.52	803.04	–	190
LXSI 251050	1170	1052	1048	882	80	88	98	1125	40	22	975	40	22	10	89	–	900	–	258
LXSI 301140	1251	1143	1138	979	75	75	91	1212	40	22	1068	40	22	10	99	-3.2	996.4	–	239
LXSI 301304	1431	1306	1302	1132	82	85	97	1380	48	22	1228	48	22	10	115	–	1150	–	323
LXSI 401385	1530	1387	1383	1178	107	107	130	1480	36	26	1290	36	26	12	100	–	1200	–	541
LXSI 451606	1770	1608	1604	1375	125	125	150	1710	48	30	1500	48	30	14	100	–	1400	–	802
LXSI 451830	2002	1832	1828	1595	125	125	150	1940	54	30	1720	54	30	14	115	-4.9	1619.8	–	951
LXSI 501997	2190	1999	1995	1731	127	132	144	2130	72	30	1880	72	30	16	109	-8	1760	–	1199
LXSI 502400	2590	2402	2398	2110	135	145	160	2520	80	30	2280	80	30	18	118	-9	2142	–	1626
LXSI 502810	3020	2812	2808	2495	140	148	158	2950	72	36	2670	72	36	20	126	-6	2532	–	2154

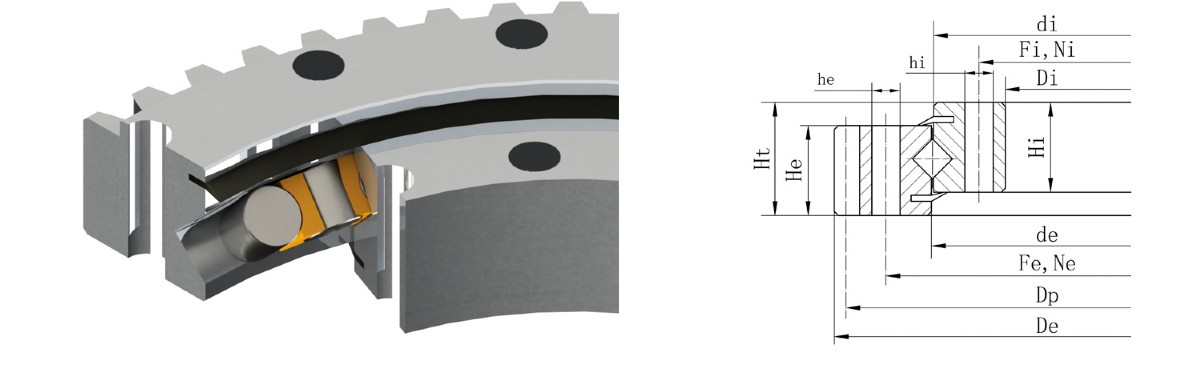

3.单排交叉滚子-外齿external gear

型号	外形尺寸							安装尺寸						齿参数				载荷	重量
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi	m	Z	x·m	Dp
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	[mm]	[mm]	[kN]	[kg]
LXSA 140414	503.3	417	413	342	44.5	44.5	56	455	20	M12	368	24	14	5	99	–	495	30.26	32
LXSA 140544	640.3	547	543	472	44.5	44.5	56	585	28	M12	498	32	14	6	105	–	630	36.31	43
LXSA 140644	742.3	647	643	572	44.5	44.5	56	685	32	M12	598	36	14	6	122	–	732	36.31	52
LXSA 140744	838.1	747	743	672	44.5	44.5	56	785	36	M12	698	40	14	6	138	–	828	36.31	58
LXSA 140844	950.1	847	843	772	44.5	44.5	56	885	36	M12	798	40	14	8	117	–	936	48.42	71
LXSA 140944	1046.1	947	943	872	44.5	44.5	56	985	40	M12	898	44	14	8	129	–	1032	48.42	77
LXSA 141044	1198.1	1097	1093	1022	44.5	44.5	56	1135	44	M12	1048	48	14	8	148	–	1184	48.42	90
LXSA 161204	1338	1206	1202	1119	58	58	68	1257	45	16	1151	45	16	10	131	–	1310	92.8	154
LXSA 161314	1448	1316	1312	1229	58	58	68	1367	50	16	1261	50	16	10	142	–	1420	92.8	168
LXSA 161424	1558	1426	1422	1339	58	58	68	1477	54	16	1371	54	16	10	153	–	1530	92.8	182
LXSA 161534	1668	1536	1532	1449	58	58	68	1587	60	16	1481	60	16	10	164	–	1640	92.8	195
LXSA 161644	1791	1646	1642	1536	58	58	68	1708	54	22	1580	54	22	10	176	–	1760	92.8	242
LXSA 161754	1901	1756	1752	1646	58	58	68	1818	60	22	1690	60	22	10	187	–	1870	92.8	258
LXSA 201904	2073.4	1906	1902	1796	58	58	68	1968	64	22	1840	64	22	14	145	–	2030	129.92	306
LXSA 200307	403.5	308	306	234	47	45	55	358	24	13	259	1月28日	13	4.5	88	–	396	15.12	24
LXSA 250400	535	401.5	398.5	305	63	63	75	466	18	20	336	18	20	8	65	–	520	35.2	61
LXSA 250475	589	476.5	473.5	383	63	63	75	540	18	20	410	18	20	5	116	–	580	22	63
LXSA 300508	654	509.5	506.5	391	73	73	85	582	30	22	432	1月30日	22	8	80	–	640	38.44	97
LXSA 250574	700	575.5	572.5	479	64	64	77	640	36	18	508	Jan-36	18	6	114	3	690	34.78	82
LXSA 250675	816	676.5	673.5	573	73	70	90	753	18	22	604	18	22	6	132	6.552	805.1	37.68	124
LXSA 250734	886	735.5	732.5	614	75	70	85	810	30	22	658	30	22	8	108	4	872	57.97	155
LXSA 300823	979	824.5	821.5	717	79	82	100	893	36	22	753	Jan-36	22	10	94	11	962	62.8	178
LXSA 300980	1144	981.5	978.5	869	79	84	100	1050	36	22	910	36	22	10	111	8	1126	64.73	228
LXSA 361116	1289.5	1118	1114	984	90	94	114	1198	40	22	1035	40	22	10	125	10.5	1271	75.4	335
LXSA 361250	1476	1252	1248	1079	91	100	110	1350	40	26	1150	40	26	10	144	8.6	1457.2	75.4	505
LXSA 451390	1604	1392	1388	1204	112	116	130	1500	48	30	1280	48	30	10	157	7.5	1585	87	620
LXSA 451595	1836	1597	1593	1436	120	115	135	1700	45	30	1485	45	30	16	112	8	1808	185.5	791
LXSA 451790	2027	1792	1788	1616	130	128	150	1905	48	30	1675	48	30	14	142	7	2002	175.8	1004
LXSA 502002	2267	2004	2000	1821	129	119	140	2124	72	30	1880	72	30	16	139	8	2240	199.4	1174
LXSA 502242	2534	2244	2240	2048	132	122	144	2373	60	33	2112	60	33	18	138	9	2502	229.6	1482
LXSA 502500	2790	2502	2498	2296	148	142	164	2640	72	33	2360	72	33	18	151	19.8	2757.6	257.4	1895
LXSA 502810	3116	2812	2808	2606	148	142	164	2950	80	33	2670	80	33	20	152	20	3080	286	2200

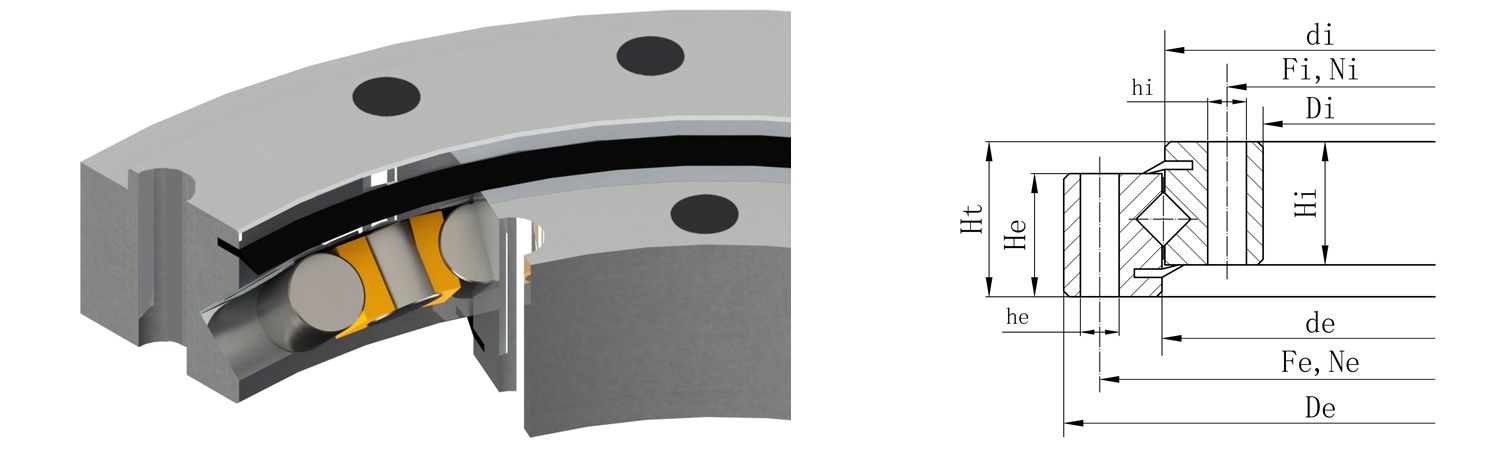

3.单排交叉滚子无齿non gear

型号	外形尺寸							安装尺寸						重量
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi
	[mm]	[mm]	[mm]	[-]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[kg]
LXSU 160220	300	221	219	140	44	44	52	270	12	18	170	12	18	16
LXSU 160270	350	271	269	190	44	44	52	320	16	18	220	16	18	20
LXSU 200307	403.5	308	306	234	47	45	55	358	24	13	259	28	13	26
LXSU 200340	440	341.5	338.5	240	53	53	60	400	18	22	280	18	22	37
LXSU 140414	486	415	413	342	44.5	44.5	56	460	24	14	368	24	14	28
LXSU 140544	616	545	543	472	44.5	44.5	56	590	32	14	498	32	14	38
LXSU 140644	716	645	643	572	44.5	44.5	56	690	36	14	598	36	14	44
LXSU 140744	816	745	743	672	44.5	44.5	56	790	40	14	698	40	14	52
LXSU 140844	916	845	843	772	44.5	44.5	56	890	40	14	798	40	14	60
LXSU 140944	1016	945	943	872	44.5	44.5	56	990	44	14	898	44	14	67
LXSU 141094	1166	1095	1093	1022	44.5	44.5	56	1140	48	14	1048	48	14	77
LXSU 161204	1289	1206	1202	1119	58	58	68	1257	45	16	1151	45	16	124
LXSU 161314	1399	1316	1312	1229	58	58	68	1367	50	16	1261	50	16	135
LXSU 161424	1509	1426	1422	1339	58	58	68	1477	54	16	1371	54	16	146
LXSU 161534	1619	1536	1532	1449	58	58	68	1587	60	16	1481	60	16	158
LXSU 161644	1752	1646	1642	1536	58	58	68	1708	54	22	1580	54	22	214
LXSU 161754	1862	1756	1752	1646	58	58	68	1818	60	22	1690	60	22	228
LXSU 161904	2012	1906	1902	1796	58	58	68	1968	64	22	1840	64	22	248

回转支承可同时承载轴向力、径向力和倾覆力矩，运转灵活，其中双排球系列回转支承在相近尺寸下可有效提高产品.
